Organ of the Parish Church of St Clemens

Two Manual electro pneumatic Pipe Organ (Romanus Seifert, Kevelaer)

Link to the old Seifert organ


[St. Clemens, Kapellen]


Overview
Construction Year 2015
Number of Keyboards 2
Keyboard Range C-g'''
Pedal C-f'
Action electro pneumatic, electro-mechanical
Stop Action electro pneumatic, electro-mechanical
Stops 28

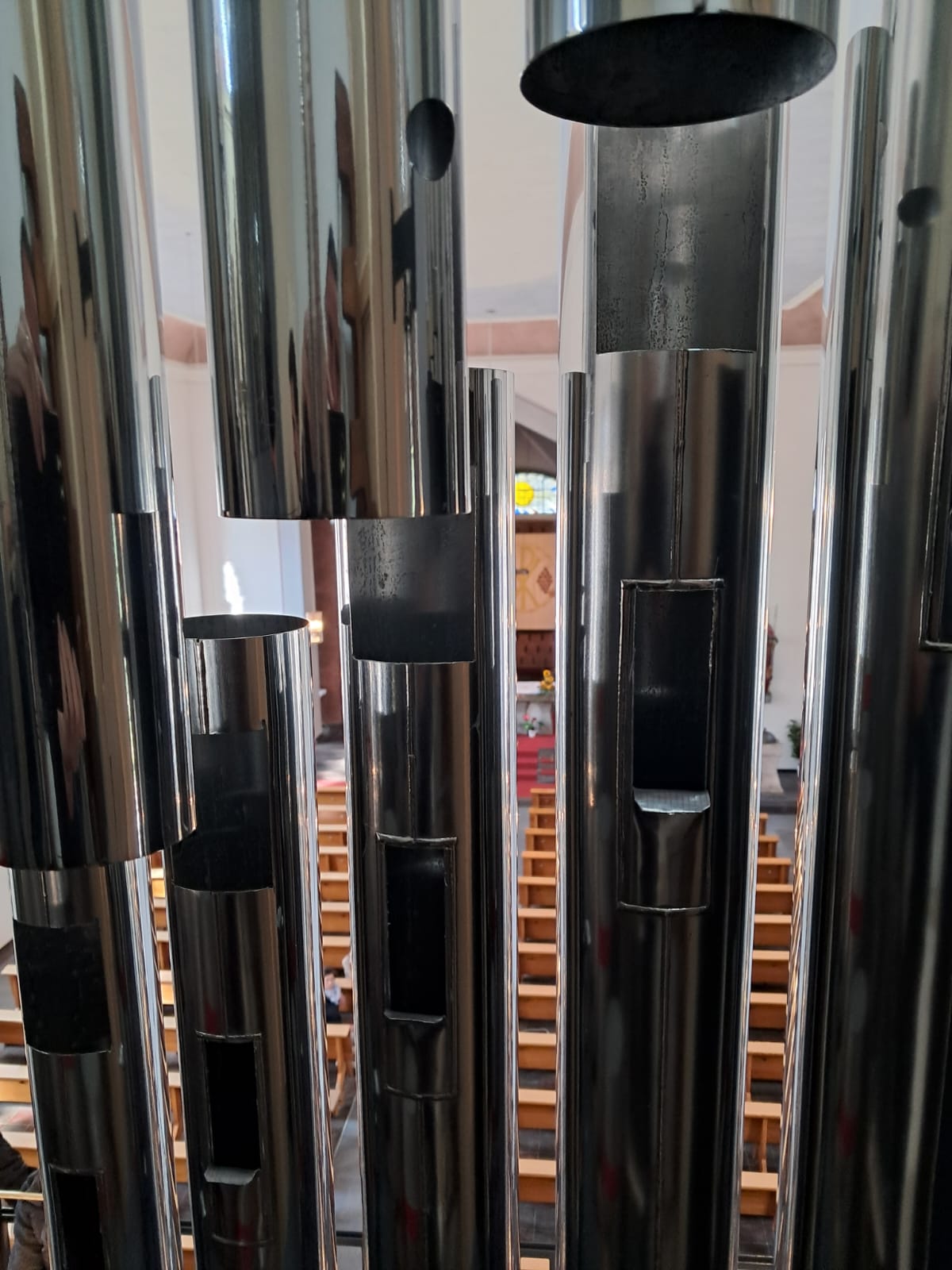

Prinzipal Base 8

[St. Clemens, Kapellen]

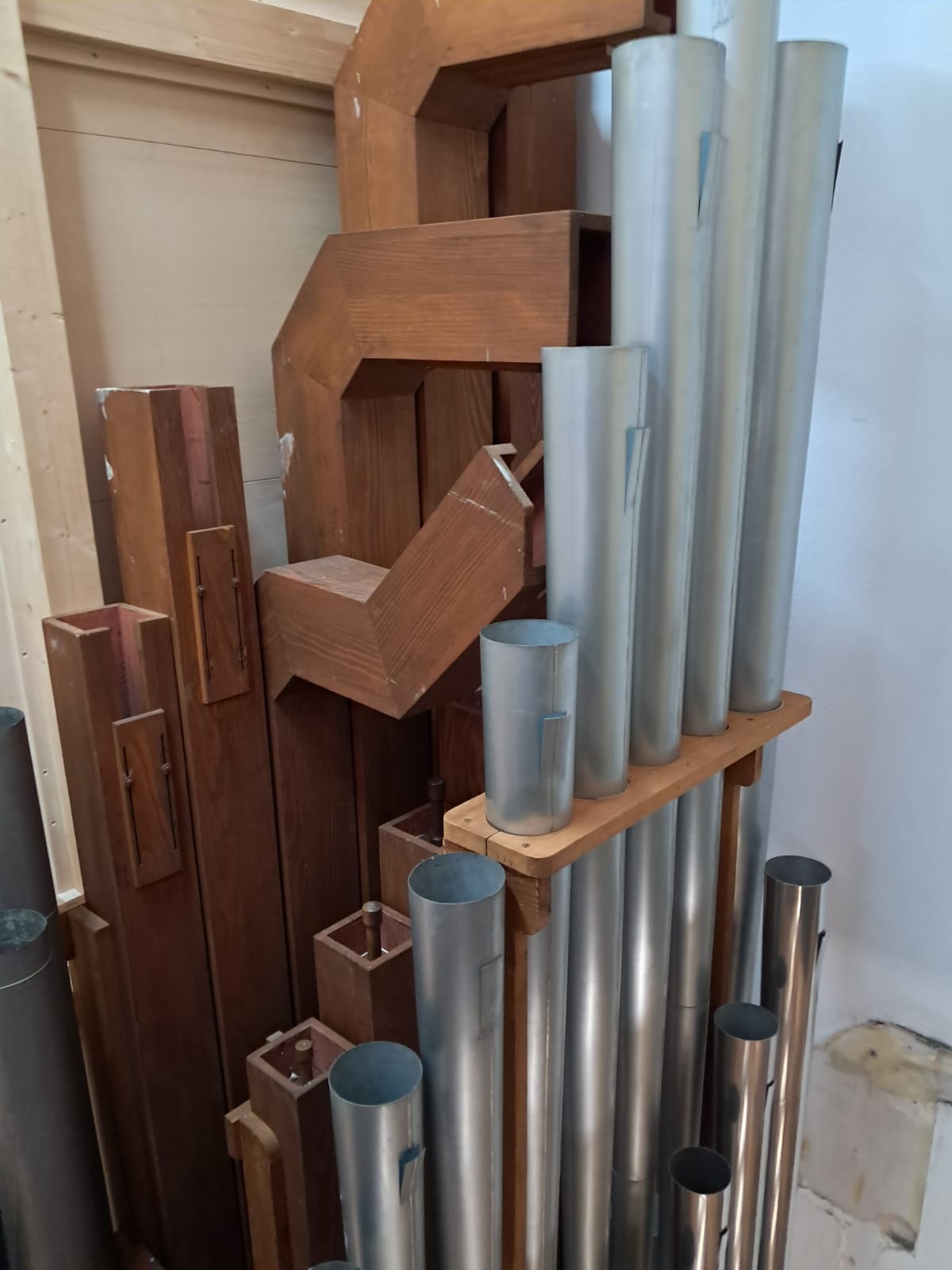

Pedal pipes

[St. Clemens, Kapellen]

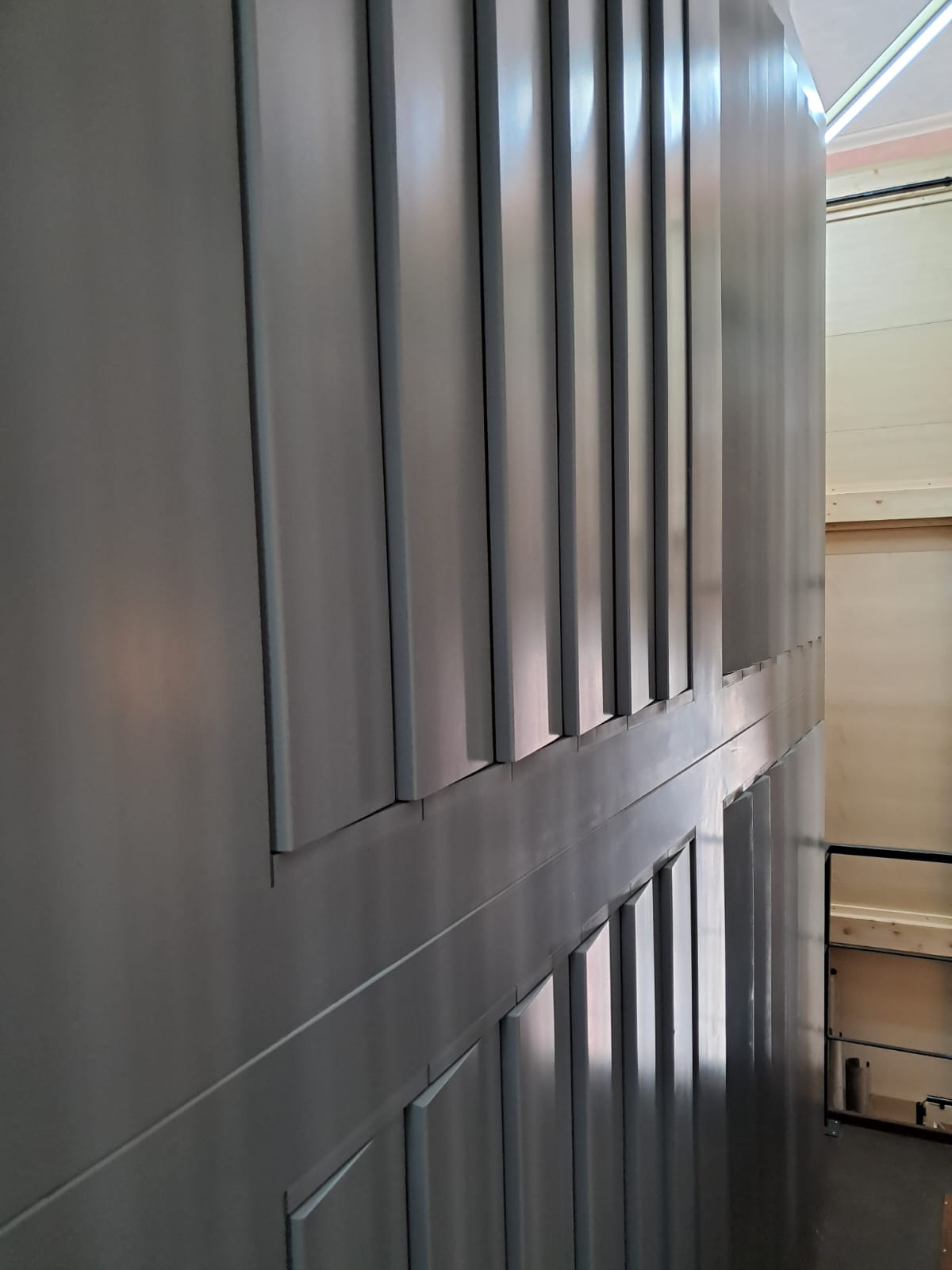

Doors of the swell box

Disposition
Main Division I Positive Division II Pedal

Electro-pneumatic pellet chests

Bordun 16'

Principal 8'

Harmonieflöte 8'

Lieblich Gedackt 8'

Salicional 8'

Octave 4'

Hohlflöte 4'

Quinte 22/3'

Superoctave 2'

Mixtur 5f 11/3'

Trompete 8'

Klarine 4'


Electric slider chests

Geigenprincipal 8'

Rohrflöte 8'

Gambe 8'

Vox coelestis 8'

Violprincipal 4'

Traversflöte 4'

Violine 2'

Progressio 3f 22/3'

Harmonietrompete 8'

Oboe 8'


Tremulant

 Electro-pneumatic pellet chests

Principalbass 16'

Subbass 16'

Quintbass 102/3 (Extension)

Octavbass 8'

Gedacktbass 8'

Posaune 16'

Basstrompete 8'

Couplers

Standard couplers: II/I, I/P, II/P

Sub octave couplers: II/I, II/II

Super octave couplers: II/I, II/P

Programmable pistons

[St. Clemens, Kapellen]

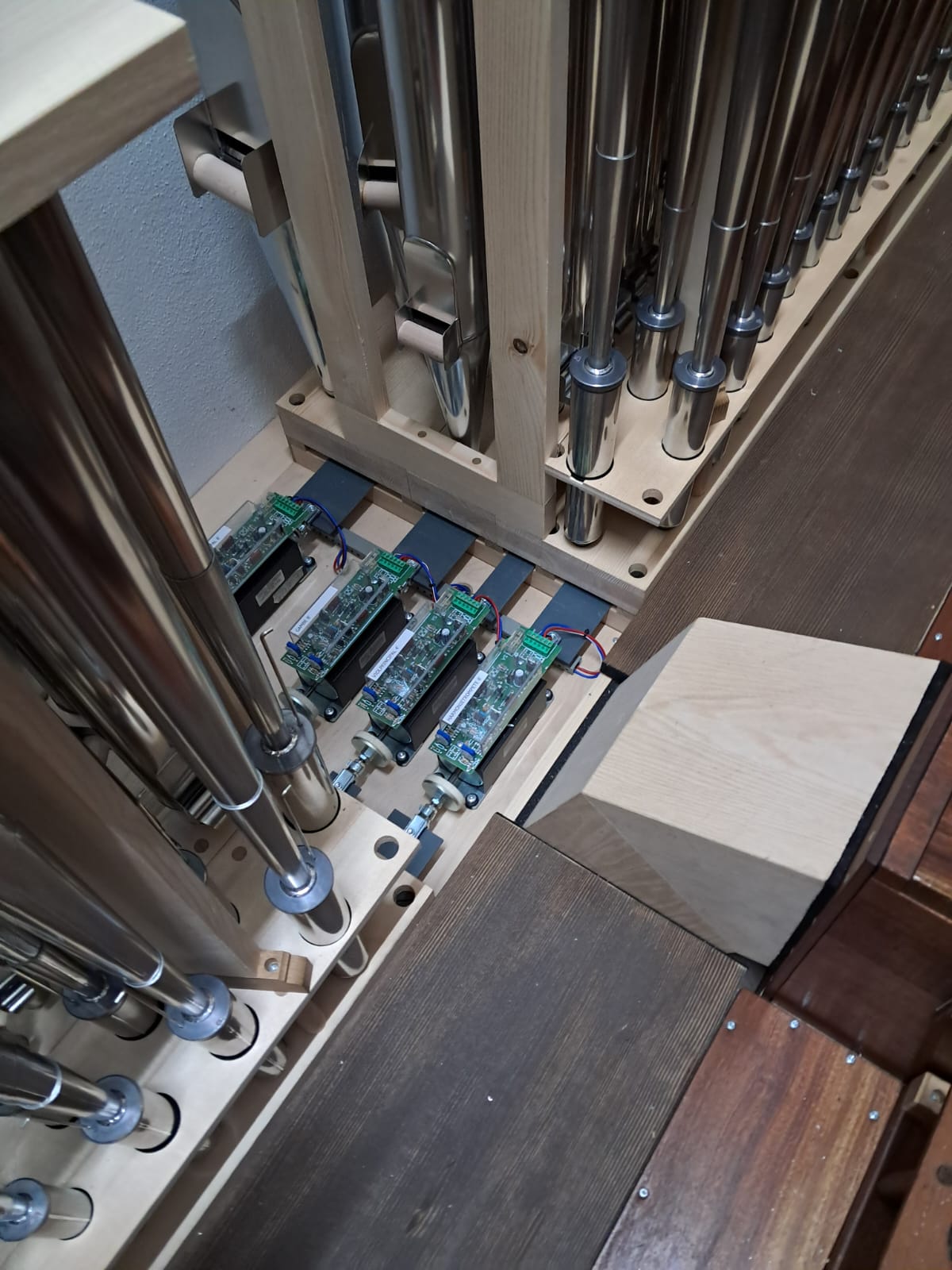

Register action (magnets)

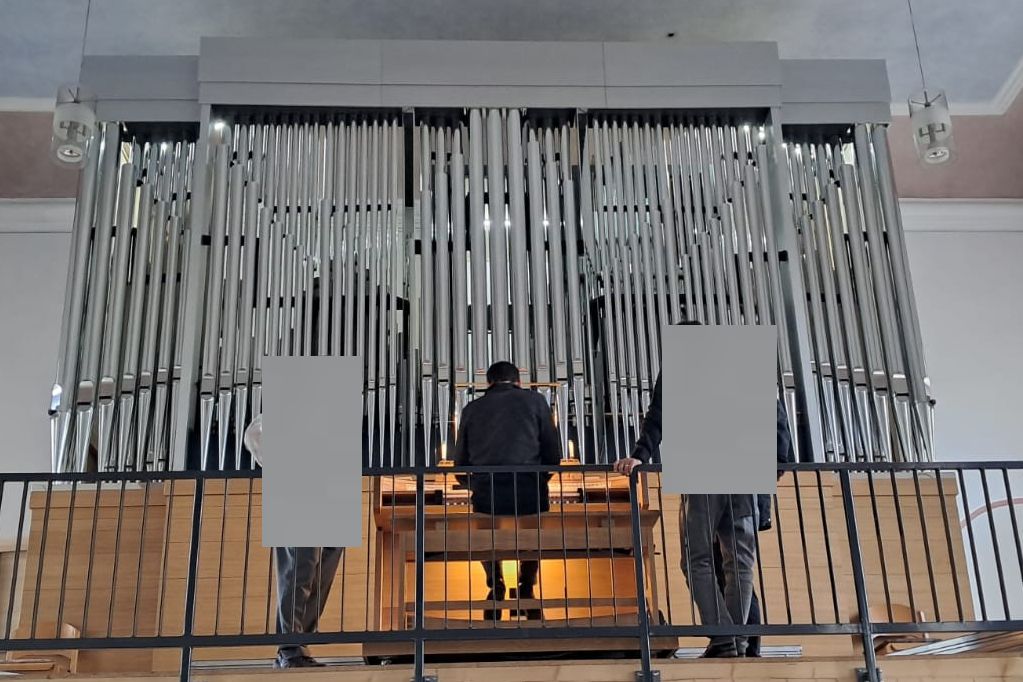

[St. Clemens, Kapellen]View through the prospect
